Mitosis describes the division of one cell into two identical daughter cells. It occurs in several stages, each stage describing a stereotyped set of changes in cell contents and structure. In this article, we will look at the stages of mitosis and a clinical application of mitosis.

Figure 1 - Microscope image of cells in various stages of mitosis

Fig 1 – Microscope image of cells in various stages of mitosis

Stages of Mitosis

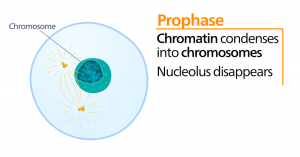

Prophase

Each chromosome is made of two genetically identical chromatids, joined by a centromere. During DNA replication, the genetic material is loosely packed as chromatin. For mitosis however, the DNA needs to be more tightly packed to allow for easier separation in anaphase. At the start of prophase, chromatin begins condensing into chromosomes.

In addition, mitotic spindles begin to form. Mitotic spindles are structures made from microtubules that aid in the organisation and arrangement of chromosomes. The spindles originate from an organelle known as the centrosome. Each cell in mitosis has two centrosomes. During prophase, the centrosomes begin to move in opposite directions.

Figure 2 - Prophase

Fig 2 – Prophase

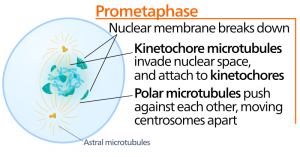

Prometaphase

In this stage the chromosomes finish condensing into their compact state. The nuclear envelope begins to breakdown, allowing spindle fibres to attach to the chromosomes. The mitotic spindles attach at a site called the kinetochore. The kinetochore is an area of the centromere on each sister chromatid. The sister chromatids are attached to spindles that originate from the opposite centrosome.

Figure 3 - Prometaphase

Fig 3 – Prometaphase

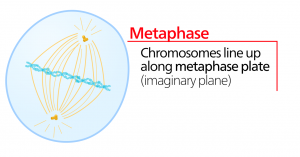

Metaphase

At this stage, the chromosomes align upon a theoretical line known as the metaphase plate. Furthermore, the centrosomes have orientated themselves to opposite ends of the cell. At this stage, the cell will check that all the chromosomes are aligned along the metaphase plate, with their kinetochores correctly attached. This helps to ensure sister chromatids are split evenly between the two daughter cells. An error in alignment or in a spindle attachment will result in the cell halting further progress until the problem is fixed.

Figure 4 - Metaphase

Fig 4 – Metaphase

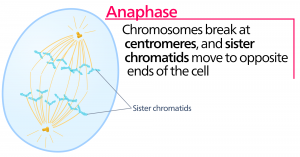

Anaphase

During this stage the sister chromatids are pulled to opposite ends of the cell. The spindle fibres contract, breaking the chromatids at the centromere and moving them to opposite poles of the cell. Spindle fibres not attached to chromatids will elongate the cell to prepare the cell for division.

Figure 5 - Anaphase

Fig 5 – Anaphase

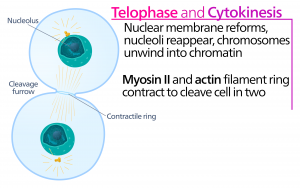

Telophase

In this phase the cell has elongated and is nearly finished dividing. Cell-like features begin to reappear such as reformation of two nuclei (one for each cell). The chromosomes decondense and the mitotic spindles fibres are broken down.



Figure 5 - Telophase & Cytokinesis

Fig 6 – Telophase & Cytokinesis

Cytokinesis

This is the division of the cytoplasm to form two new cells. This stage actually begins in either anaphase or telophase however it doesn’t finish until after telophase. To separate the two cells, a ring of protein (actin ring) pinches the cytoplasm along a crease known as a cleavage furrow. This splits the cytoplasm equally between the two cells.

Clinical Relevance – Errors of Mitosis

Errors in mitosis usually occur during metaphase. Usually this is due to misalignment along the metaphase plate or a failure of the mitotic spindles to attach to one of the kinetochores. This can result in the daughter cells having unequal distribution of chromosomes – a cell with one too many and a cell with one too few.

The cell missing a chromosome usually dies however the cell with the extra chromosome can cause problems. If the extra chromosome carries genes that promote cell growth, this may lead to cancer. It is worthy to note the mechanism of cancer requires many conditions and the addition of an extra chromosome on its own would be insufficient to form cancer.
